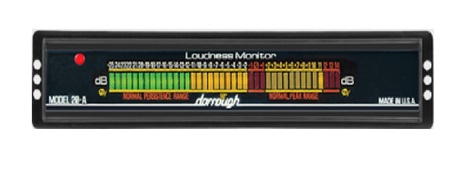

Dorrough 20-A Analog Loudness Meter
The 20-A is a 1 RU straight-line standard loudness meter with a scale allowing 14dB of headroom in 1dB steps from +14 to -25. The unit is 1/2 rack space wide and requires a rackmount adapter (sold separately).
Dorrough 20-A Includes:
- 20-A Analog Loudness Meter
Dorrough 20-A Features:
- Color LED meter display
- Two peaks and hold functions: 3-second auto-reset and hold until reset
- Two audio channel inputs to monitor stereo phase
- Phase warning light with access to a full-scale correlator via the 3-positions switch.
- “Dorrough Window” automatic mode for fast and easy verification of reference level
- Alarm function can be set to trigger remote alarm device if:
- Audio levels are too low to cause a display for a 2-minute period
- Program level is a full scale or greater for one or more sample periods
- Stereo phase error
- Includes external power supply
Dorrough 20-A Specifications:
- Inputs: Phoenix/Euroblock
- Alarm Output: 8-pin mini DIN (also used for optional RW-100 remote connection)
- Power Input Connector: Mini Euroblock
- Dimensions (WxHxD): 8.5” x 1.75” x 3”
- Weight: 0.5 lb.
- Optional rackmount adapters: 20S for a single unit, 20D for 2 units
