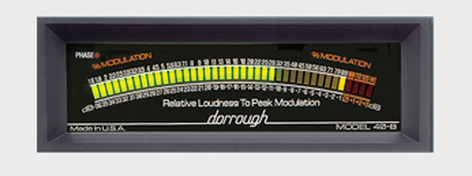

Dorrough 40-B Rackmount Analog Meter, Calibrated in Percent Modulation

The 40-B is a 2 RU curved-line relative loudness to peak modulation meter with a scale calibrated in percent modulation. The unit is 1/2 rack space wide and requires a rackmount adapter (sold separately).

Dorrough 40-B Includes:

• Rackmount Assembly

Dorrough 40-B Features:

• Color 40-LED meter display
• Two peaks and hold functions: 3-second auto reset and hold until reset
• Two audio channel inputs to monitor stereo phase
• Phase warning light with access to a full-scale correlator via the 3-positions switch.
• “Dorrough Window” automatic mode for fast and easy verification of reference level
• Alarm function can be set to trigger remote alarm device if:
  • Audio levels are too low to cause a display for a 2-minute period
  • Program level is a full scale or greater for one or more sample periods
  • Stereo phase error
• Internal power supply

Dorrough 40-B Specifications:

• Inputs: XLR 3-pin female
• Alarm Output: 8-pin mini DIN (also used for optional RW-100 remote connection)
• Dimensions: 8.5” wide x 2.875” high x 6.5” deep
• Weight: 2.3 lb.
• Optional rackmount adapters: 40S for single unit, 40D for 2 units
