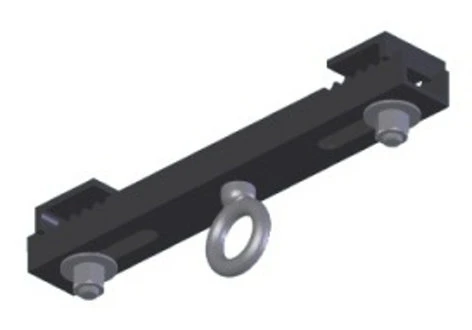

The ATM BC12-17 is an adjustable channel style beam clamp that mounts flush underneath an I-Beam’s flanges. It comes equipped with a centrally located rigging point for suspending objects from wire rope, rigging chain, spansets, etc.
This steel beam clamp provides a load rated overhead rigging point from structural I-Beams with flange widths ranging between 12″-17″. The BC12-17 provides a fast, easy and safe way to rig direct loads, bridles and hitches from overhead, and a hand wrench is all that is required to secure this clamp. The beam flanges must be parallel to the floor to achieve the stated working loads.
ATM Flyware BC12-17 Channel Style Beam Clamp Includes:
- (1) Beam clamp
- (2) Locking angle plates
- (2) Flat 5/8″ washers
- (2) 5/8-11 Nyloc nuts
ATM Flyware BC12-17 Channel Style Beam Clamp Features:
- For static loading only
- Provides safe load-rated hang point to 45° off center
- For beam flanges from 12″-17″
- Two load-rated suspension points
- Clamps quickly and permanently to I-Beams
ATM Flyware BC12-17 Channel Style Beam Clamp Specifications:
- Material: All steel components
- Width: 12″ to 17″ (305 to 432 mm)
- Finish: Powder coat
- Color: Black
- Design Factor: 5:1
- WLL: 980 lbs (444.521 kg)
- 45° WL: 578 lbs (261 kg)
- PLEASE NOTE: DO NOT EXCEED 45° off vertical
