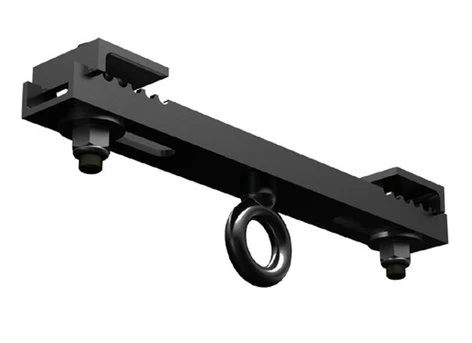

Brand new 😉 Adaptive Technologies Group BC7-12 16″ Channel Style Beam Clamp For 7-12″ Beams, 1600lb WLL 🌟

Standard, pre-engineered beam clamps anchor to a building’s beam structure and offers a safe and predictable method of rigging grids, clusters, arrays and other objects from overhead. This channel style beam clamp is adjustable and mounts flush underneath the beam’s flanges. It comes equipped with a centrally located rigging point for suspending objects from wire rope, rigging chain, spansets, etc.

Use the BC7-12 channel style beam clamp to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 7″ and 12″ (178-305 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches. A hand wrench is all that is required to secure the clamp. The beam flanges must be parallel to the floor to achieve the stated safe working loads.

Allen Products BC7-12 Specifications:

• Materials: All Steel Components
• Width: 7″ to 12″ (178-305 mm)
• Finish: Powder Coat
• Color: Black
• Design Factor: 4:1
• Working Load: 2000 lbs (908 kg) WLL (Vertical)
• 45° WL: 825 lbs (375 kg)
• 90° WL: Do Not Side Load
