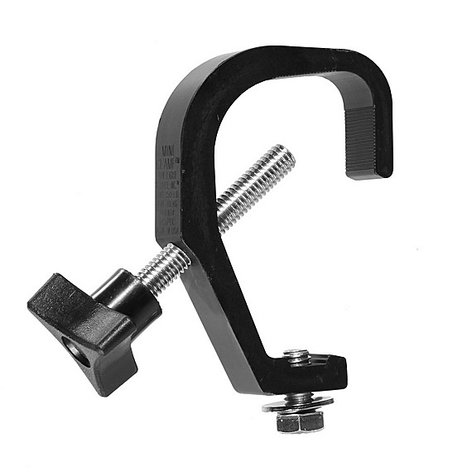

Outlet ⭐ The Light Source MNBTV Mini-Clamp With 1.5″ Knob, Black ⭐

The Light Source’s MNBTV Mini-Clamp is perfect for PAR 38’s, Pin Spots, and other small fixtures. The clamp is made from an aircraft grade aluminum extrusion with micro-grooves that conform to the pipe for real gripping power.

The Mini-Clamp will grip from 3/4″ to 2″ tubing. Pipe bolt is 3/8″-16 TPI x 2″ Black Plastic Knob. Yoke bolt is a 3/8″-16 TPI x 3/4″ long. SWL is 150 pounds,70kg, yet the Mini-Clamp weighs less than 6 Oz.

The Light Source MNBTV Specifications:

• Minimum Size: 3/8″ pipe, .675″ OD
• Maximum Size: 1.5″ pipe, 1.9″OD, 2″ OD Truss Tube
• Safe Vertical Working Load: 150 lb 70kg
• Hardware:
  • Pipe bolt is a steel 3/8″-16 TPI x 2″ stud with a Black Plastic Knob.
  • Yoke bolt is a 3/8″-16 TPI x 3/4″ long.
  • Belleville Washer
• Dimensions: 4″ tall x 2-3/4″ wide x 7/8″ thick
• Weight: 6oz
• Case Quantities: 48
